POS Hardware

POS hardware components are chosen based on the specific needs of a business and the nature of its operations.

Designed to seamlessly integrate with your Electronic Cash Register, these accessories are crafted to elevate your point-of-sale experience and streamline your operations.

With the Back Office (BO) Multi-Store/Branch HQ System which support cloud Base and integrate to multiple 3rd party ERP, CRM, E-Commerce solutions.

For Food & Beverages Solutions (Offline/Online) : Café, Fusion café , Kiosk, Pub, Cafeteria, Concept Kopitiam, Coffee House, Steamboat Restaurant, Chinese/Malay/Mamak Restaurant, Japanese Restaurant,, KTV Lounge, Pub, Bubble Tea, FoodCourt business etc.

For Merchandise Retailing Solutions we cater for Duty Free Shop, Tour Bus Commission, Beauty Salons, Pet Shops, Electrical Shops, Hardware Stores, Stationery Shops, Laundries, Mini/Hyper Market, Boutiques, Mobile Shops, Fresh Vege & Fruits Stores, Florist, Fashion Chain Stores etc, to provide real time data at any time require.

Features

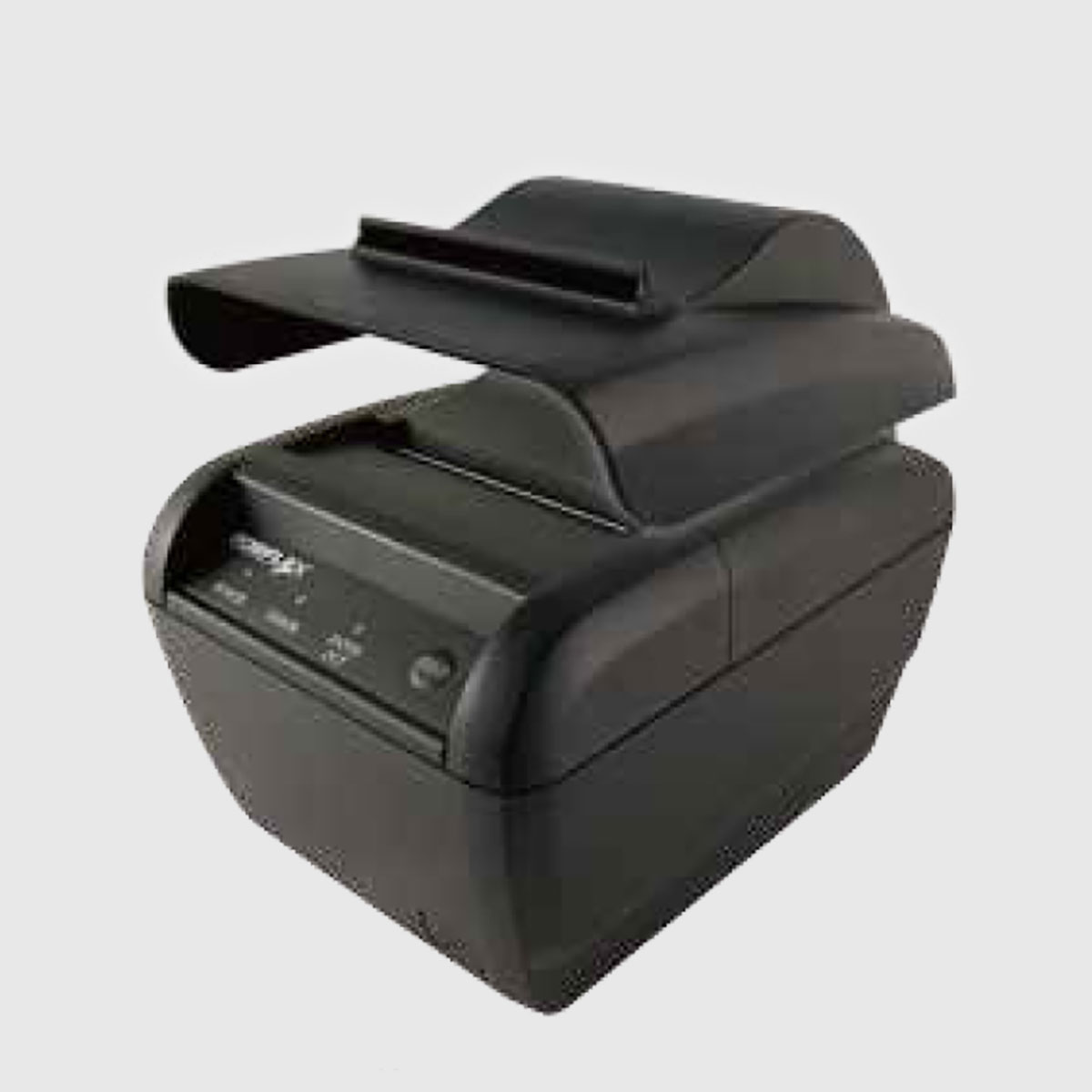

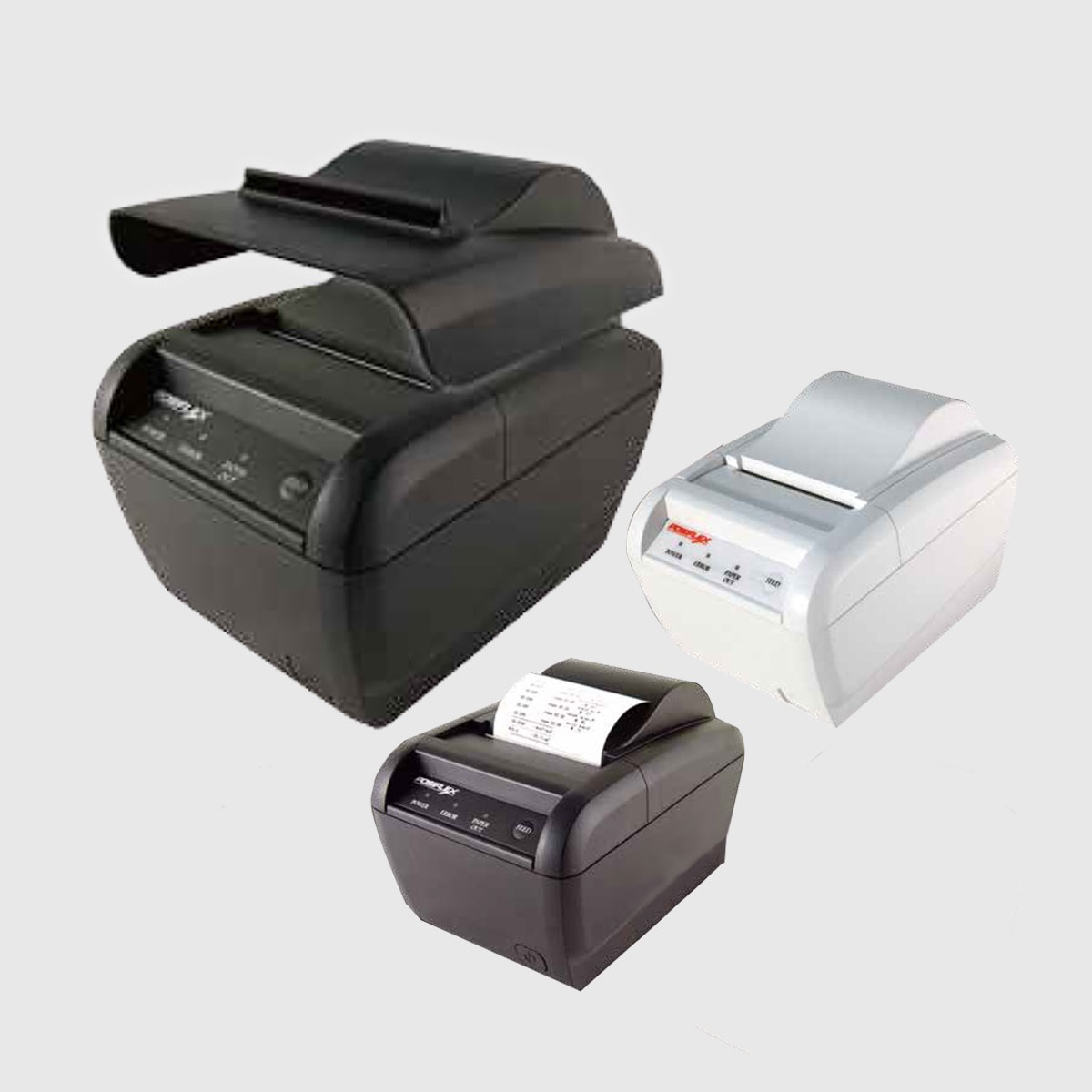

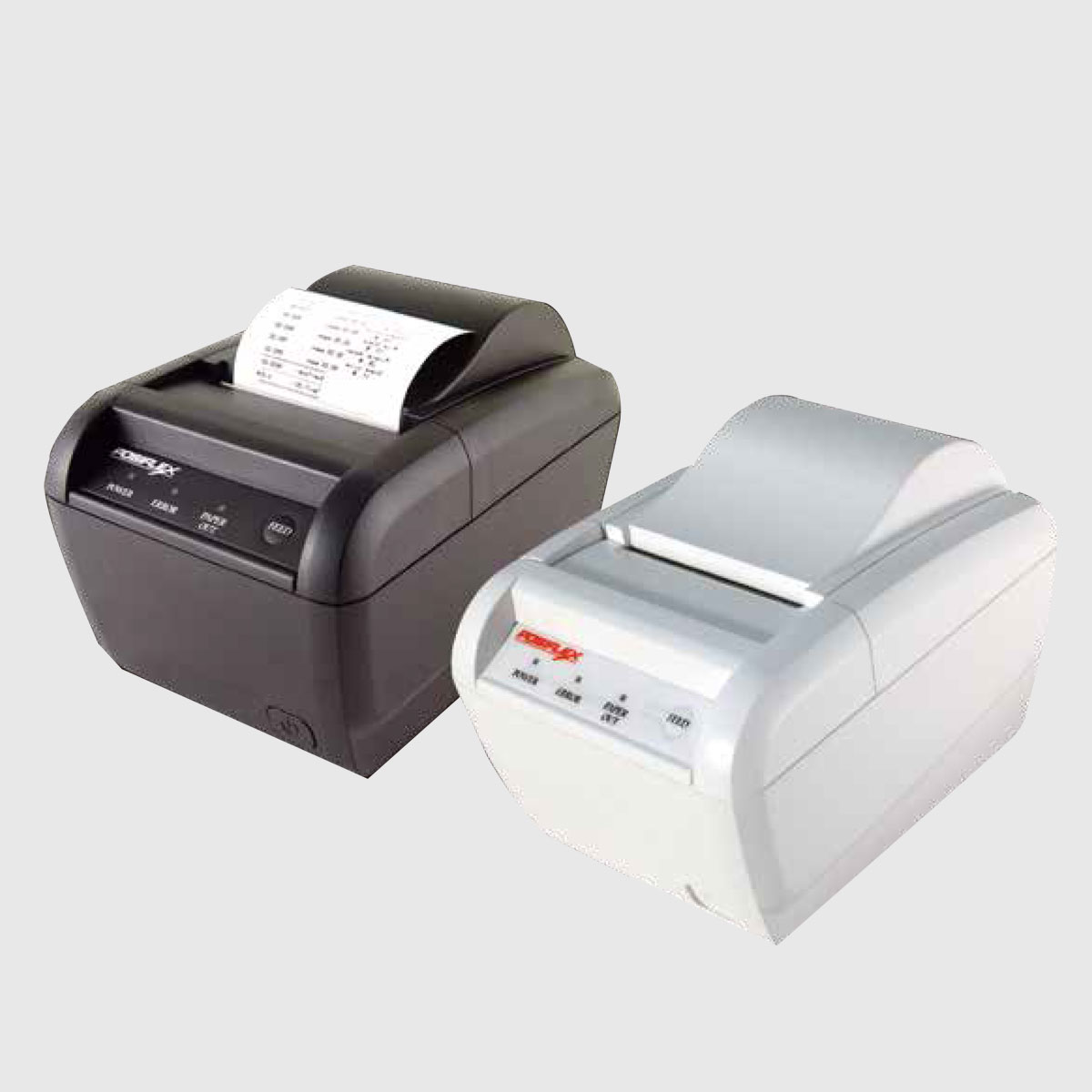

As a receipt and information printer, its speedy printing satisfies crowded check-out line and promotional activities in the peak hours. Optional spill-resistant top cover displays thoughtful design for retailers to run their business smoothly even in the harsh environments like pub, bar, etc.

Specification
Print Speed
Up to 220 mm/sec
Print Resolution
8 dots/mm, up to 576 dots/line (default 512 dots/line)
Paper Width
80 or 58 +0/-1 mm
Printing Width
64 mm (512 dots/line)/72 mm (576 dots/line)
Input Buffer
6KB
LED Indicator
Power; Error; Paper out
Cutter
Auto cutter + manual cutter
Power Supply
24V/60W
Interface
PP-8802: USB (True USB/Virtual COM selectable) + Serial

PP-8803: USB (True USB/Virtual COM selectable) + Serial + LAN
Dimension (W x D x H in mm)
148 x 205 x 143
Weight (N. W. in kg)
1.2
Lanuage Support
International Character Set
15 international character sets (Denmark I, Denmark II, Ex-Jugoslavia, France, Germany, Italy, Japan, Korea, Latin America, Norway, Spain, Spain II, Sweden, UK, USA)
Character Code Page
23 code pages supported
Bar Code Printing
UPC-A/E, EAN13/8, ITF, CODE39/93/128, CODABAR, QR Code, PDF417

Features

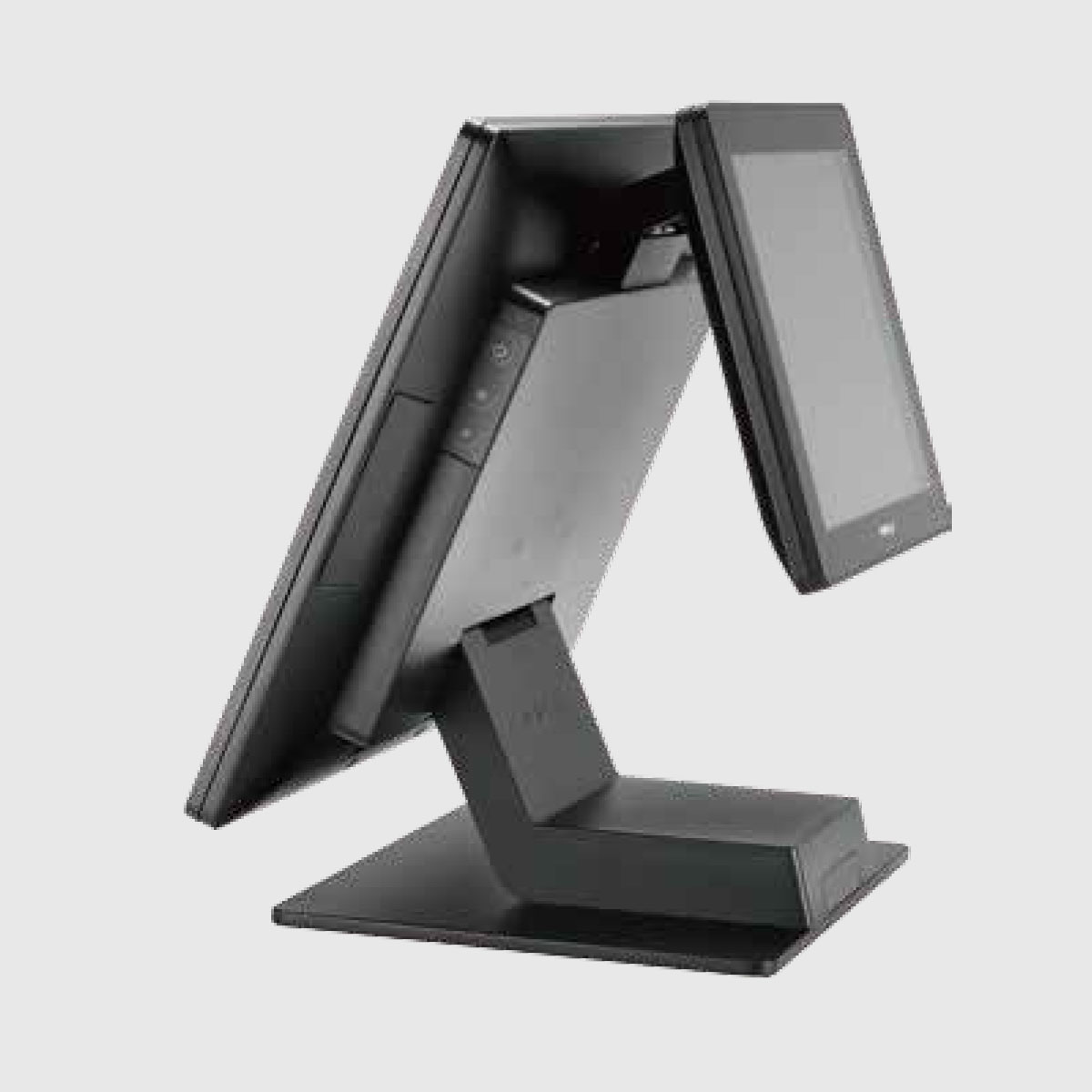

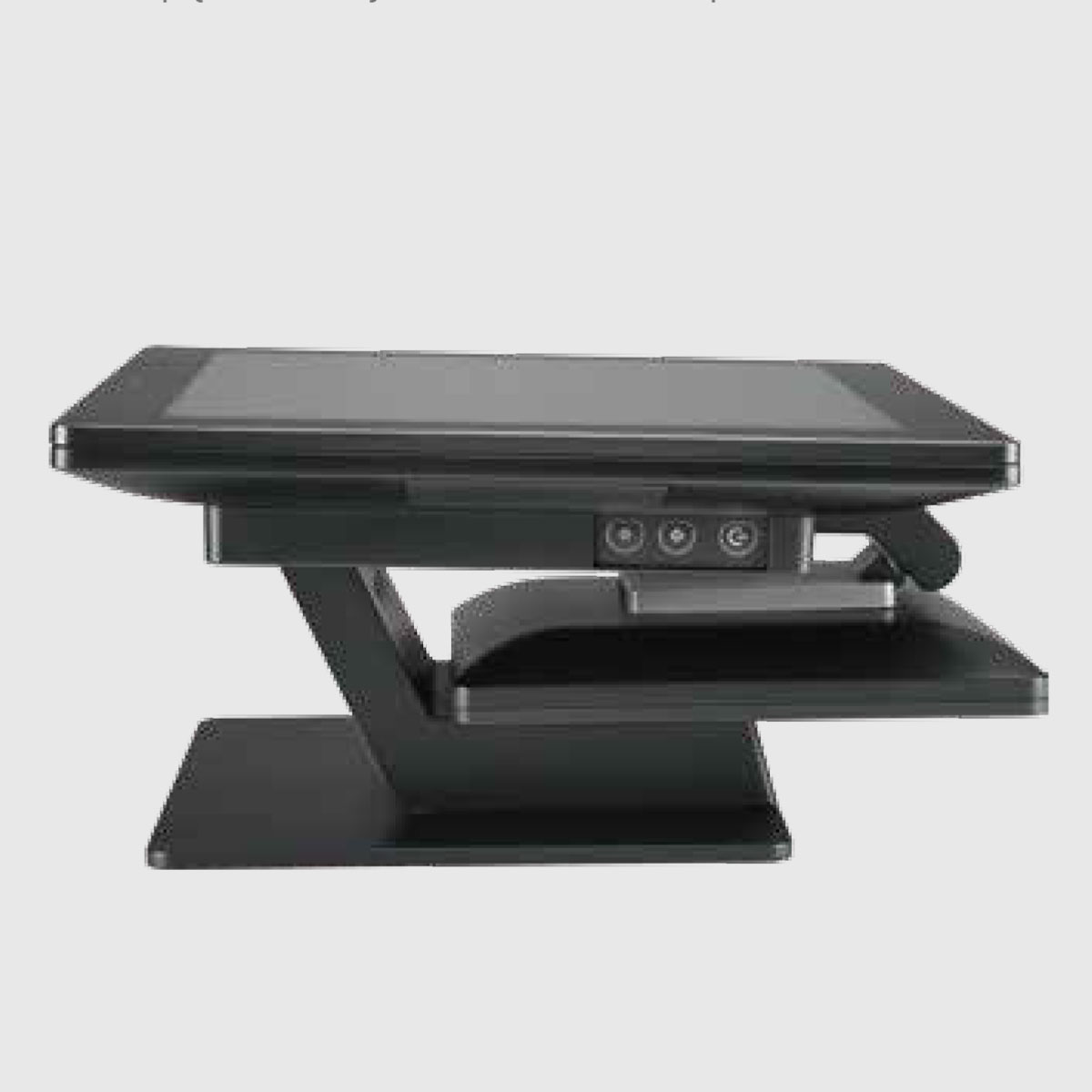

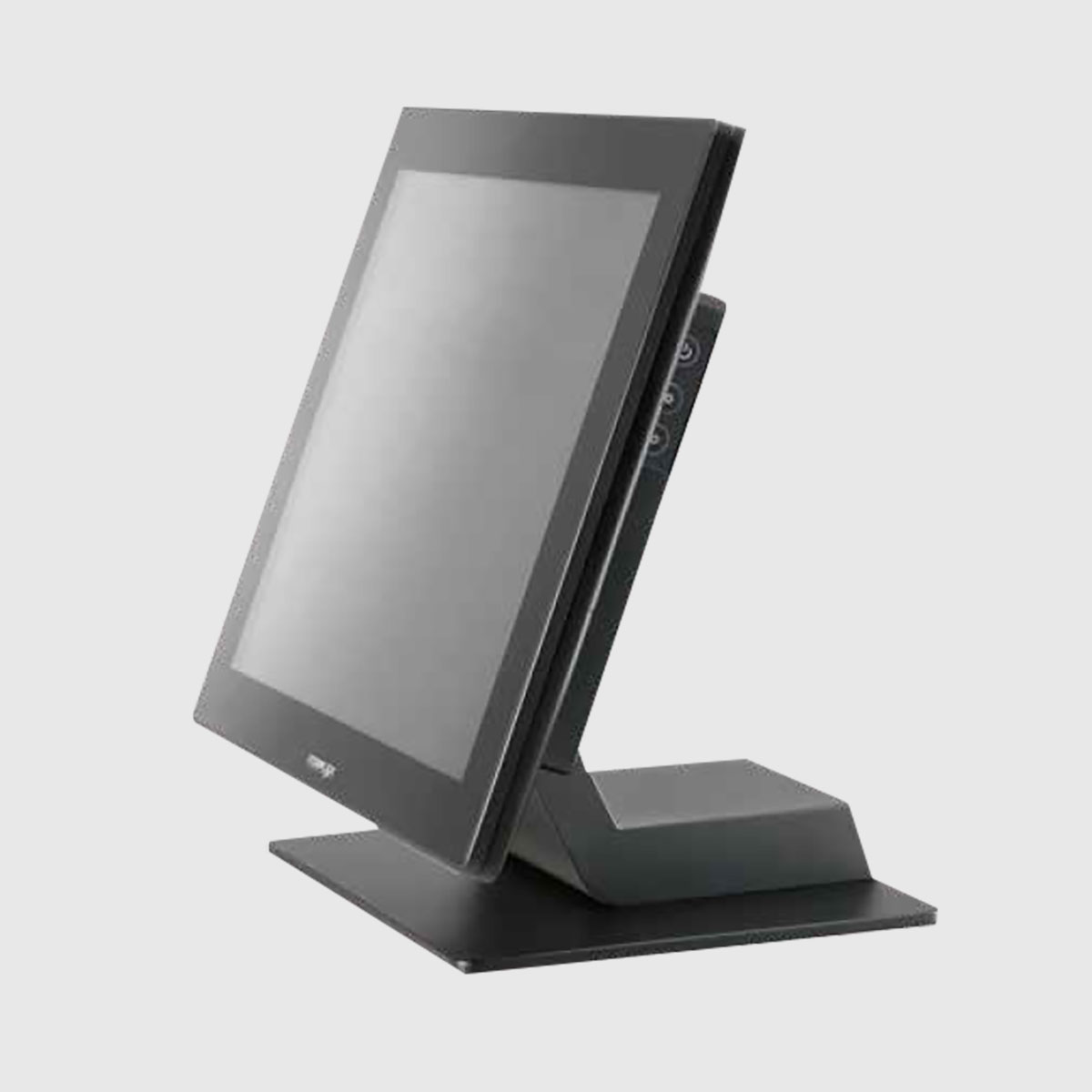

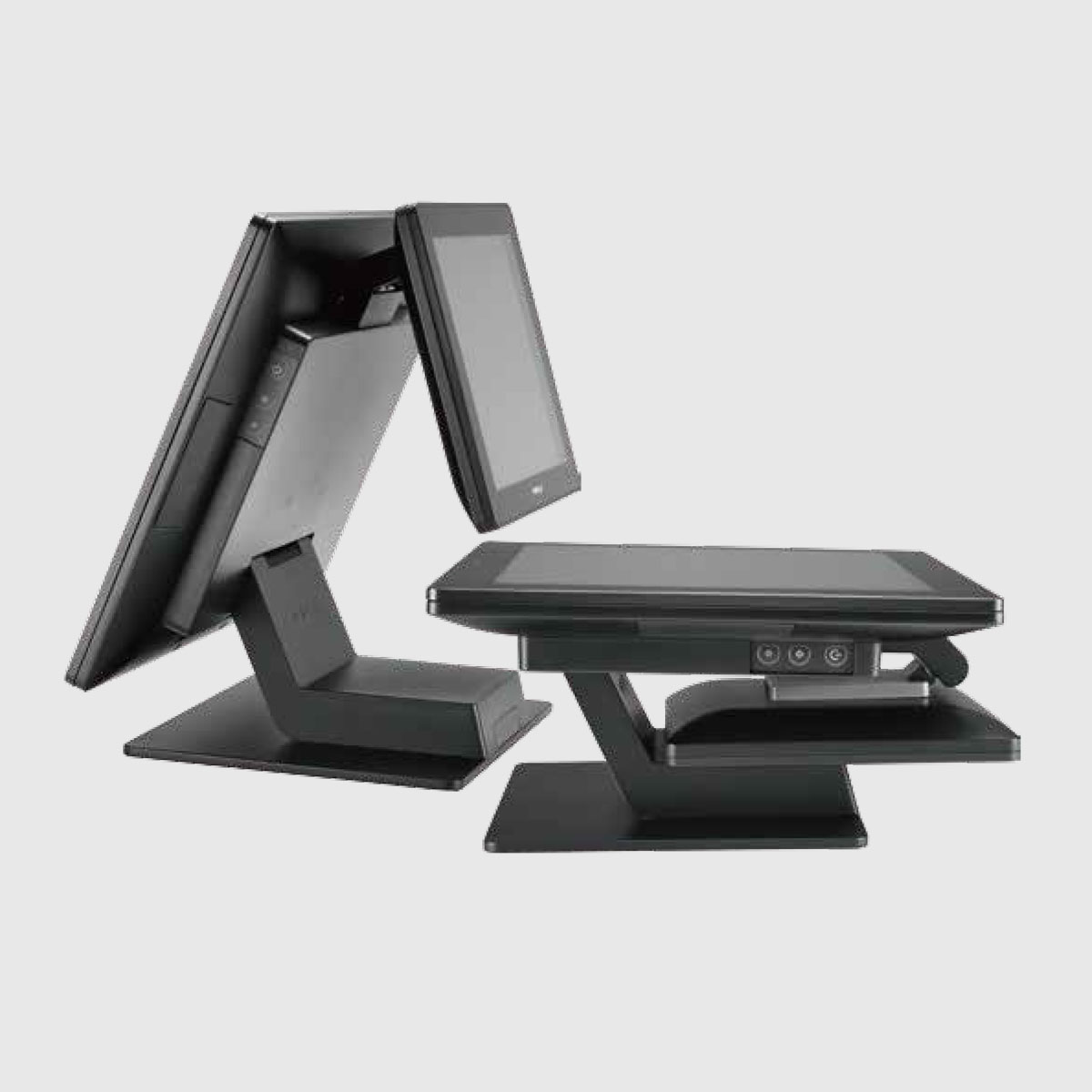

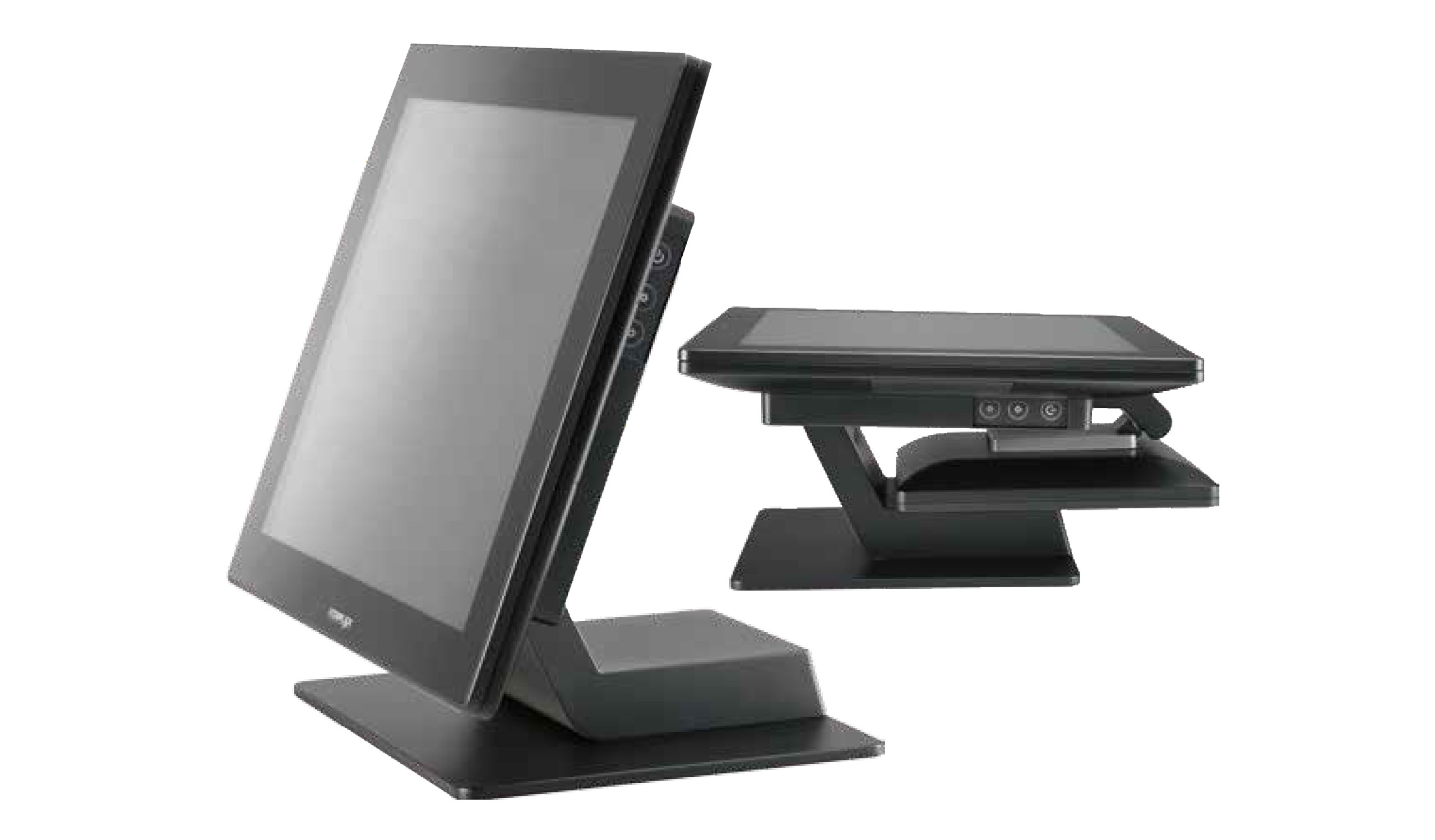

Specification RT-5015 RT-5016
Processor
Intel Kaby Lake Core i3-7100U, 2.40 GHz, 3M Cache

Intel Kaby Lake Core i5-7200U, 2.50 GHz, 3M Cache

Intel Kaby Lake Core i5-7300U, 2.60 GHz, 3M Cache
System Memory
DDR4 SO-DIMM slot x 2, max. 16GB
Storage Device
SATA x 2
RAID Function
N/A
Intel vPro Support
N/A
TPM Support
N/A
Power Supply
12V/60W
OS Support
Windows 10 IoT 64 bit
LCD
15" TFT LCD
15.6" TFT LCD
Resolution
1024 x 768
1920 x 1080
Touch
True-flat PCAP touch with multi-touch support (IP65 on front panel)
Serial Port
3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port
5, USB 3.0 x 2 + USB 2.0 x 3
Powered USB Port
Optional PoweredUSB module with 24V + 12V
(USB 3.0 x 1 will no longer be available with the PoweredUSB module)
OTG USB
N/A
LAN Port
10/100/1000 Mb x 1
Display Port
VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1
CR Port
1, control 2 CR via optional Y-cable, supporting 24V cash drawer
Audio
Internal 2W speaker x 1
Expansion Slot
M.2 slot x 1
Dimension (W x D x H in mm)
368 x 207 x 325
402 x 207 x 297
Weight (N. W. in kg)
5.4
5
Operating Condition
0°C - 40°C, 20%RH - 90%RH (Equipped with HDD)

0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition
-20°C - 70°C, 10%RH - 90%RH
WiFi
M.2 WiFi/BT module
Camera
1MP wide angle camera
AG Glass
Cannot coexist with built-in camera
POS Monitor
Non-touch TFT LCD: 9.7"/10.1"/15"

PCAP touch TFT LCD: 9.7"/10.1"
Line Display
2 x 20 rear-mount VFD customer line display
External UPS Pack For RT Series
UPS battery module (12V/2300mAh)
Attachment
MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor

Features

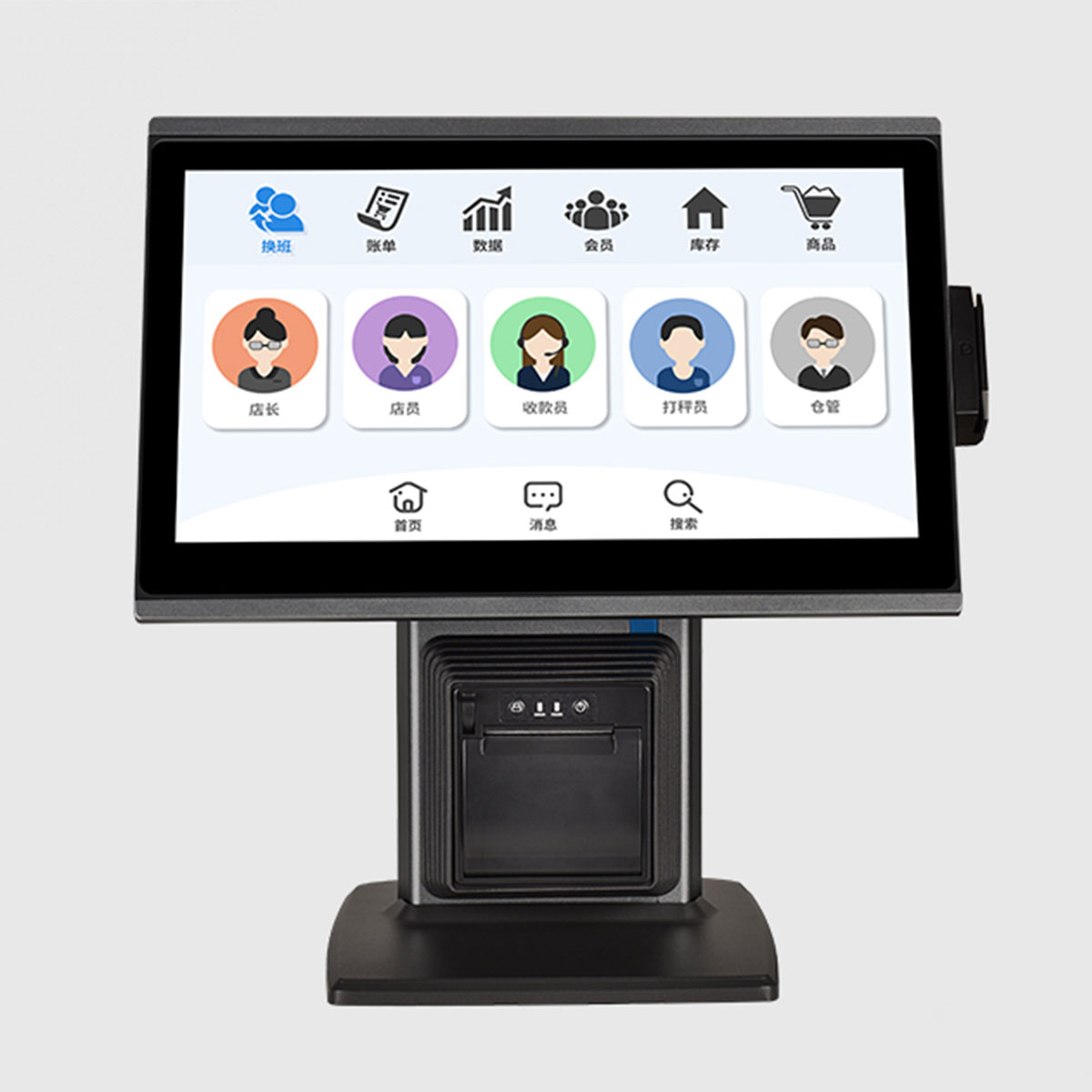

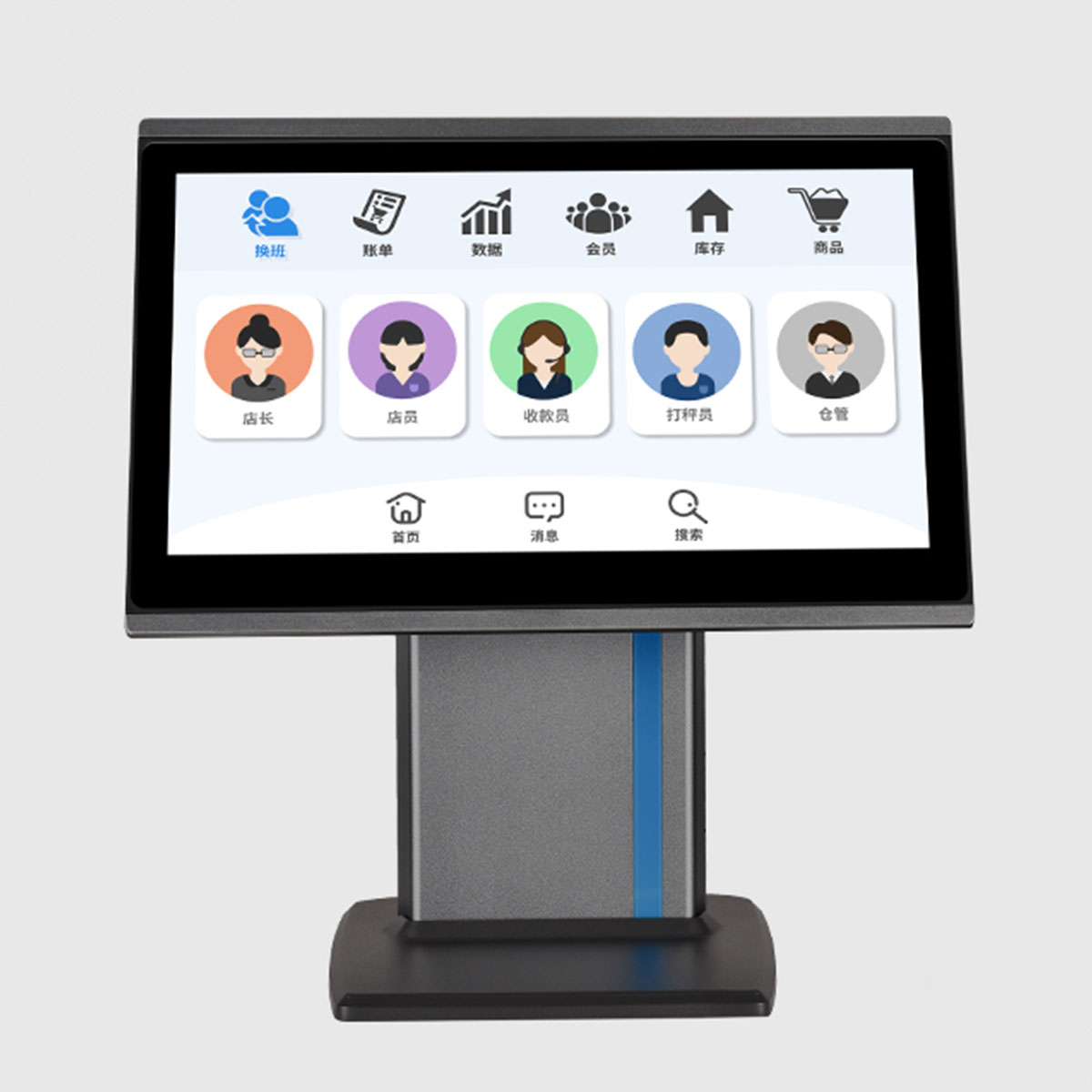

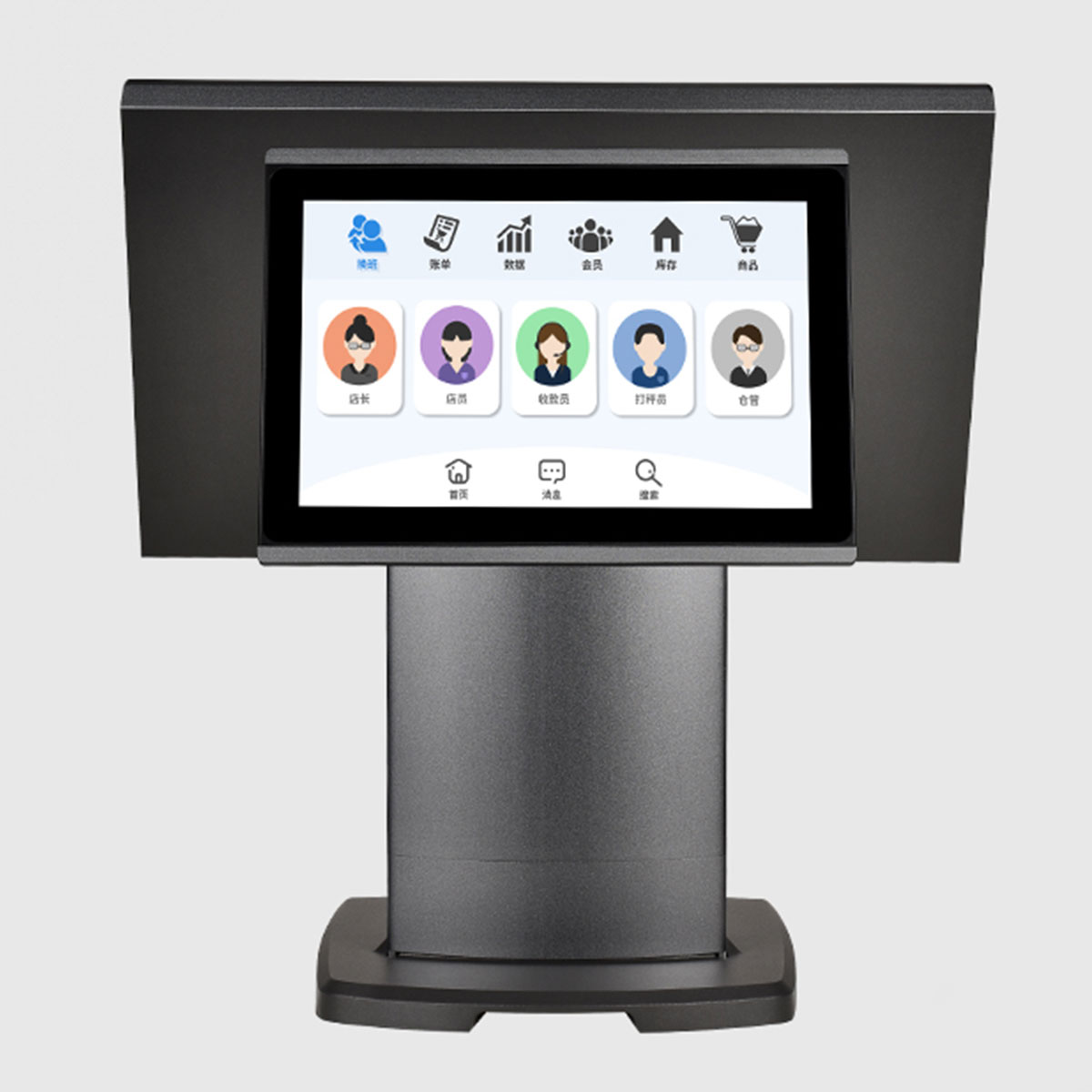

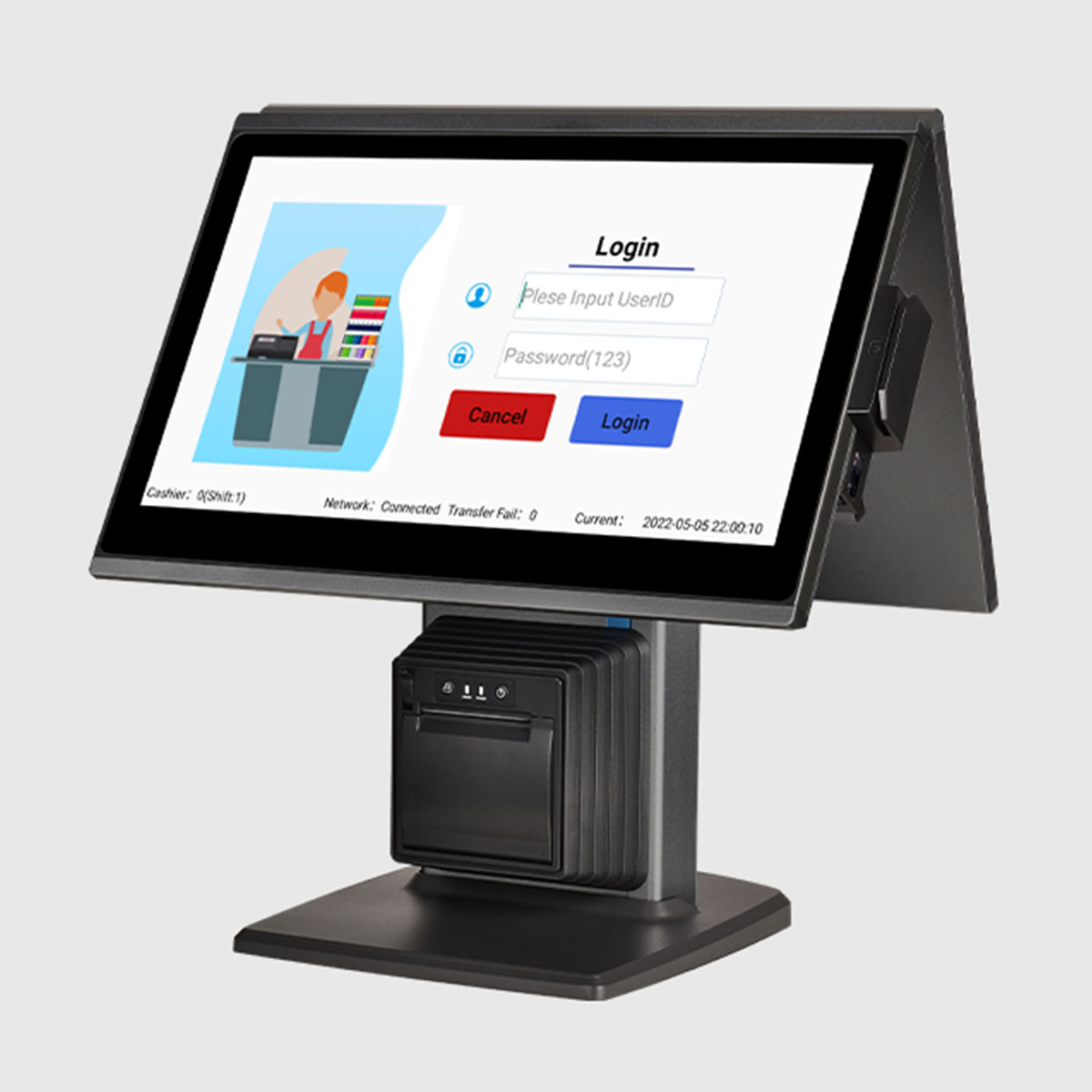

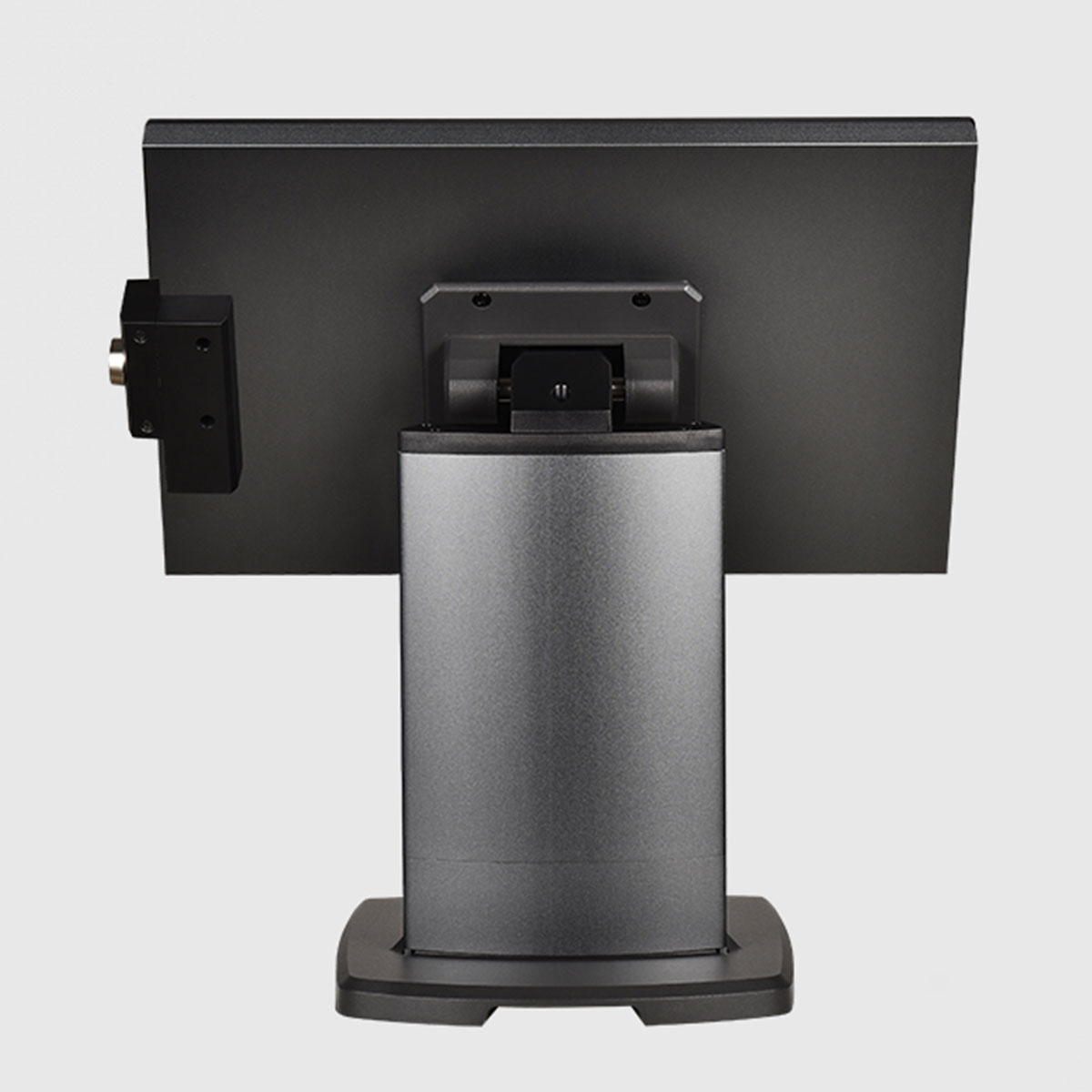

Specification
CPU
J6412, Celeron quad-code quad-threads 2.0GHz
Memory + Storage
Standard 4G+64G, optional 8G+128/8G+256G
Primary Display
Size: 15.6 inch Resolution: 1920*1080 Type: TFT-LCD
Sub-display (Optional)
Size: 15.6 inch Resolution: 1920*1080 Type: TFT-LCD
Touch Screen
Type: Capacitive Interface: USB Touch points: default 3 points
Printer (Optional)
Print type: 58mm thermal dot line printer

Print speed: Maximum 90mm/s

Print width: 48mm

Paper roll type: 57.5 ± 0.5mm, maximum outside diameter: 50mm

Paper cutting method: Manual tearing paper

Support barcode: JAN13 (EAN13), JAN8 (EAN8), CODE39, CODE128, QR

Life span: 100,000,000 pulses or more, more than 50 kilometers

Interface type: USB
MSR (Optional)
Channel position: ISO1 (1ATA), ISO2 (ABA), ISO3 (MINTS)

Recording density: 210BPI, 75BPI, 210BPI

Recording character count: 79 characters, 40 characters, 107 characters

Operation speed: 10cm/sec ~ 150cm/sec

Decoding method: F/2F

Card standart: ISO 7811/7812

Caard thickness: PVC 0.76 ± 0.08mm

Magnetic head life: 500,000 times (1 time: swipe the card once)
Scanner (Optional)
Image sensor: 640*480

Prompt mode: buzzer

Recognition accuracy: Code 39 code 5mil

Recognition code system 1D: Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, ITF-25 (Interleaved 2 of 5), Code39, Code93, Code32, Codabar, Matrix 2 of 5 Industrial 25, IATA 25, MSI Plessy

Read code system 2D: QR Code, Micro QR, Data Matrix, PDF417
Magnetic lock (Optional)
Support, COM2 interface
Compliant O.S
Windows 11, Windows 10
Power adapter
DC2.5 12V7a (with printer)

DC2.5 12V3A (without printer)
Sound prompt
Built-in 1 x 2W speaker
Dimensions
382 x 231 x 403mm (without card swiper)
Weight
7.1kg (double 15.6 inch. including printer)
Environment
Operating temperature: -10°C ~ 40°C?

Storage temperature: -20°C ~ 55°C?

Humidity: 20% ~ 90% RH without condensation

Features

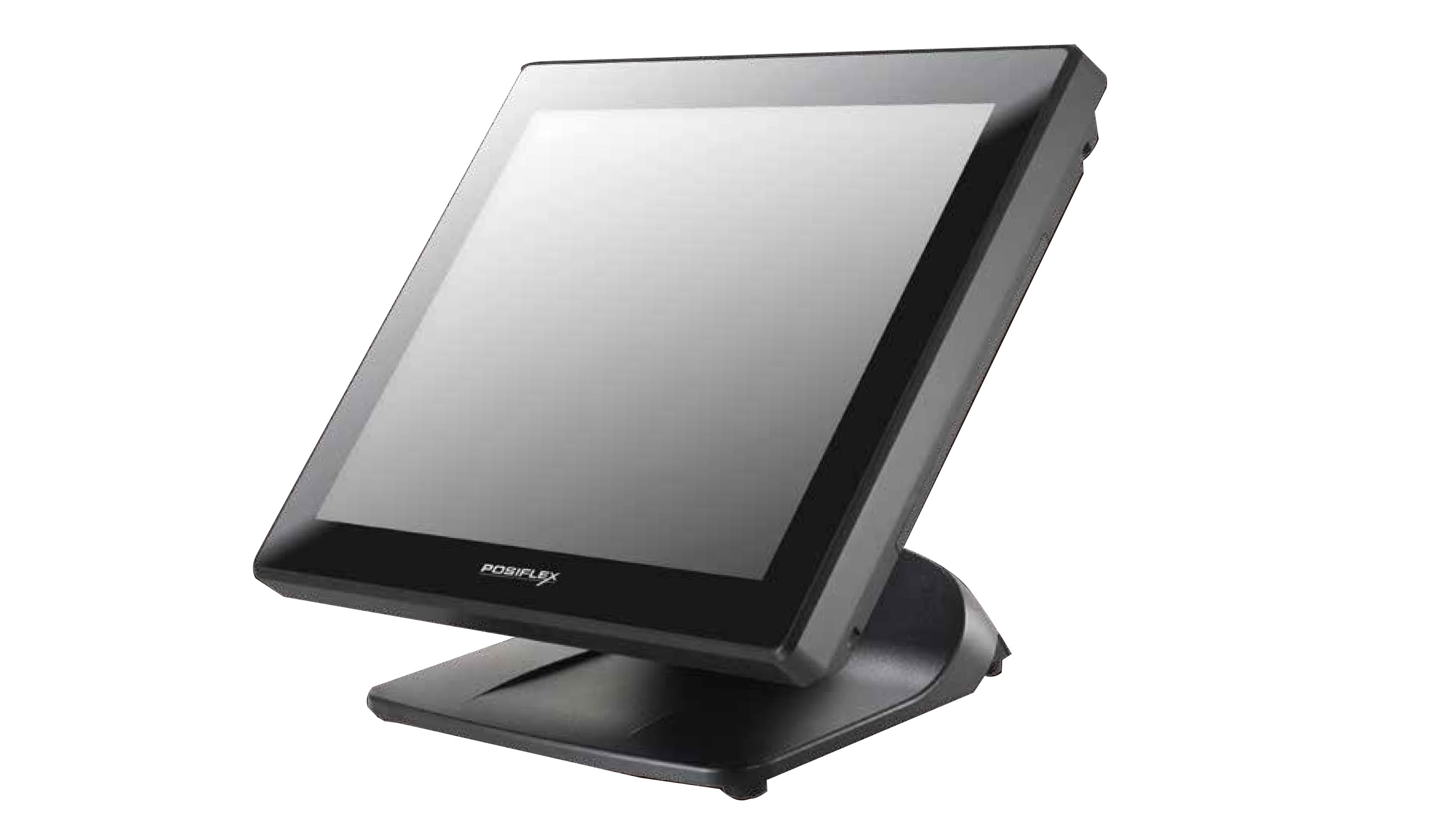

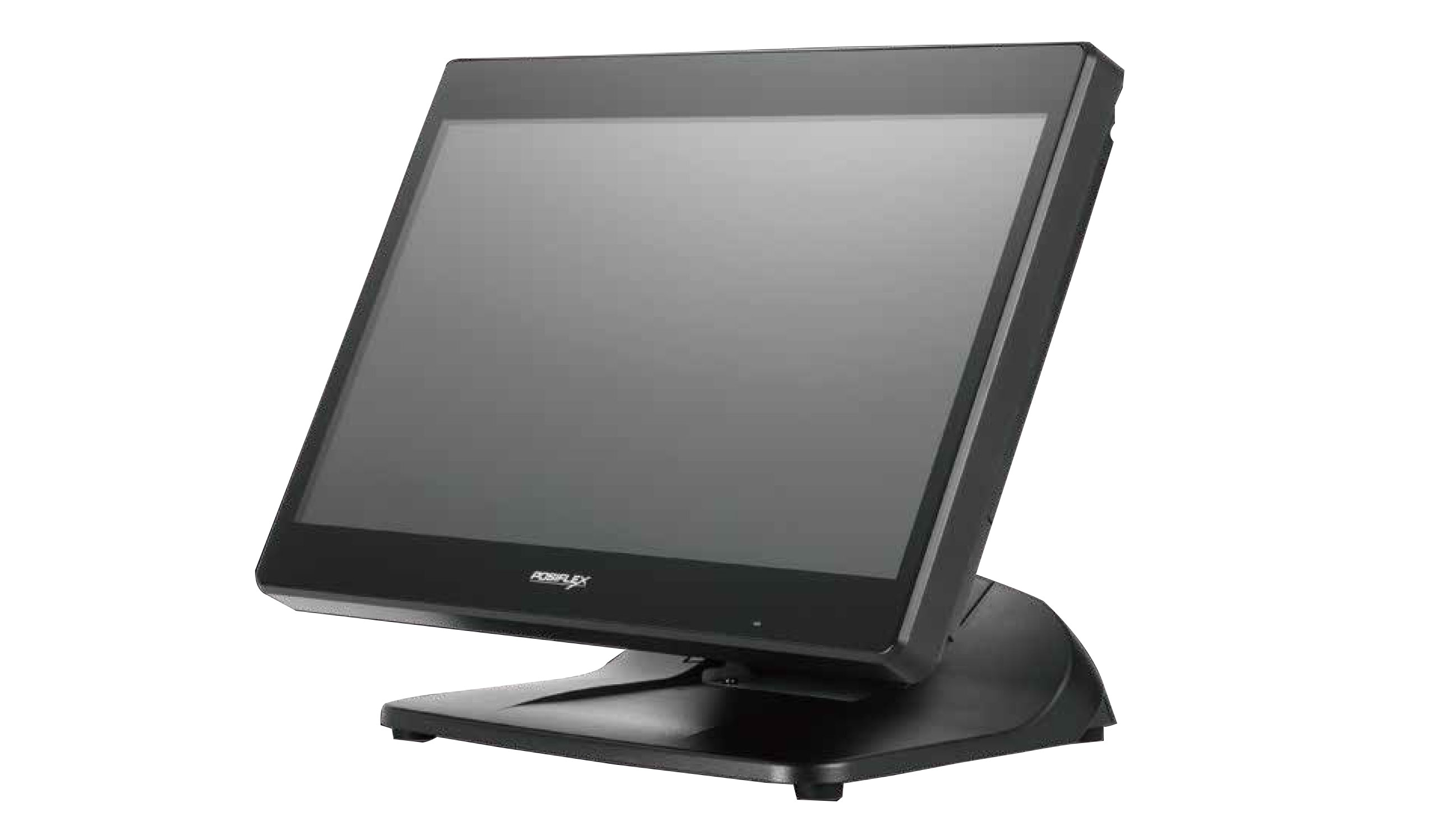

Specification PS-3615-G2
Processor
Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory
DDR4 SO-DIMM x 1, max. 16GB
Storage Device
M.2 connector (SATA Signal Only) x 1
TPM
Yes, TPM 2.0
Power Supply
12V/60W
OS Support
Windows 10 IoT 64 bit
Display & Touch
LCD
15” TFT LCD
Resolution
1024 x 768
Touch
True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port
4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port
1, via optional conversion cable through service window
Standard USB Port
5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
Powered USB Port
Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB
N/A
LAN Port
10/100/1000 Mb x 1
Display Port
VGA x 1, 12V support for Posiflex monitors
CR Port
1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port
1, via optional conversion cable through service window
Audio
Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot
M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm)
372 x 252.7 x 320
Weight (N. W. in kg)
5.86
Environmental
Operating Condition
0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition
-20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi
M.2 WiFi/BT module
Attachment Options
POS Monitor
Non-touch TFT USB LCD: 7"/9.7"
Line Display
2 x 20 rear-mount VFD customer line display;

2 x 20 rear-mount LCD customer line display;

7" color LCD graphical line display
Attachment
MSR; iButton; RFID; Fingerprint Sensor; Keypad

Features

Specification PS-3616-G2
Processor
Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory
DDR4 SO-DIMM x 1, max. 16GB
Storage Device
M.2 connector (SATA Signal Only) x 1
TPM
Yes, TPM 2.0
Power Supply
12V/60W
OS Support
Windows 10 IoT 64 bit
Display & Touch
LCD
15.6” TFT LCD
Resolution
1366 x 768
Touch
True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port
4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port
1, via optional conversion cable through service window
Standard USB Port
5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
Powered USB Port
Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB
N/A
LAN Port
10/100/1000 Mb x 1
Display Port
VGA x 1, 12V support for Posiflex monitors
CR Port
1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port
1, via optional conversion cable through service window
Audio
Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot
M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm)
372 x 252.7 x 291.4
Weight (N. W. in kg)
4.7
Environmental
Operating Condition
0°C - 40°C, 20%RH - 90%RH
Storage Condition
-20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi
M.2 WiFi/BT module
Attachment Options
POS Monitor
Non-touch TFT USB LCD: 7"/9.7"
Line Display
2 x 20 rear-mount VFD customer line display;

2 x 20 rear-mount LCD customer line display;

7" color LCD graphical line display
Attachment
MSR; iButton; RFID; Fingerprint Sensor; Keypad

Features

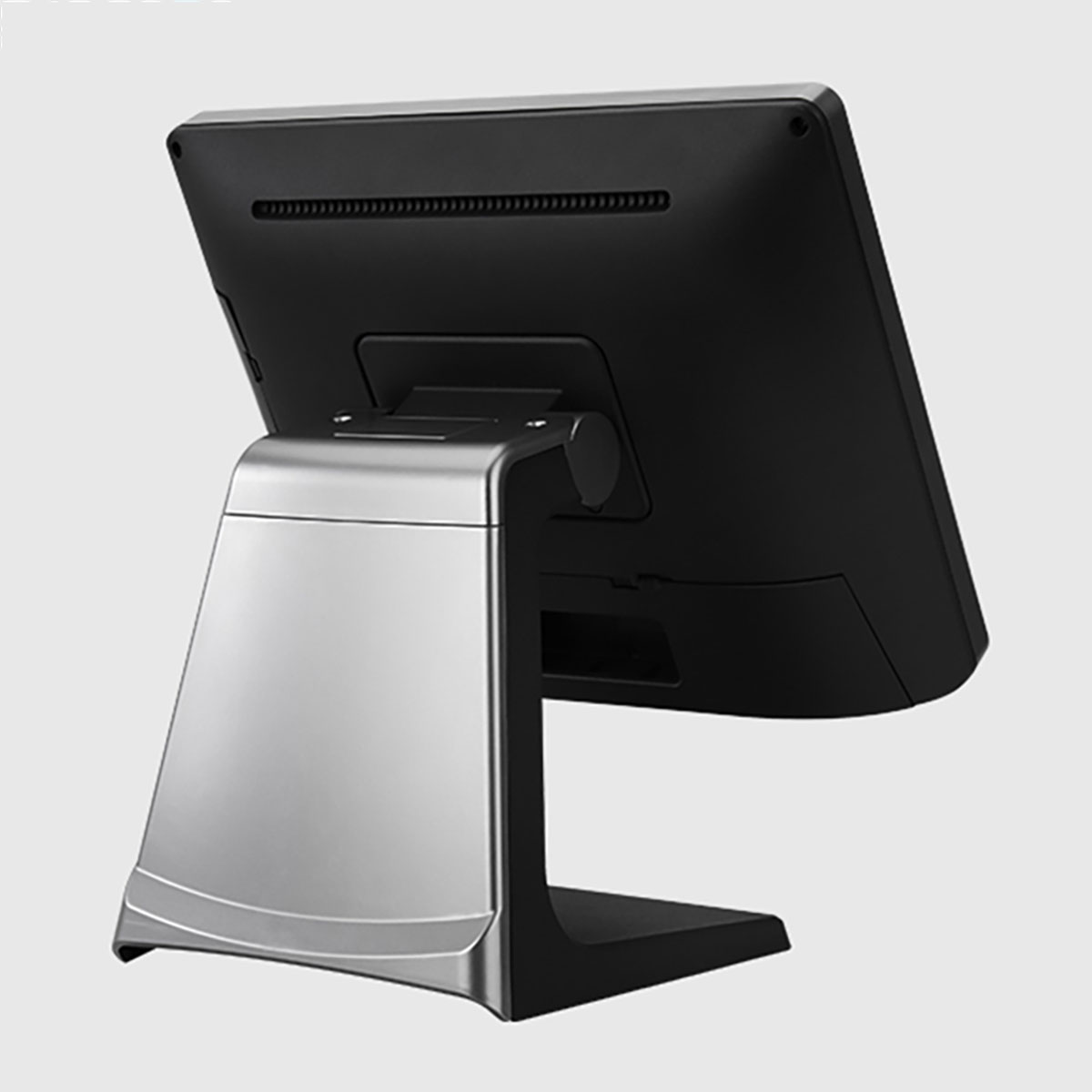

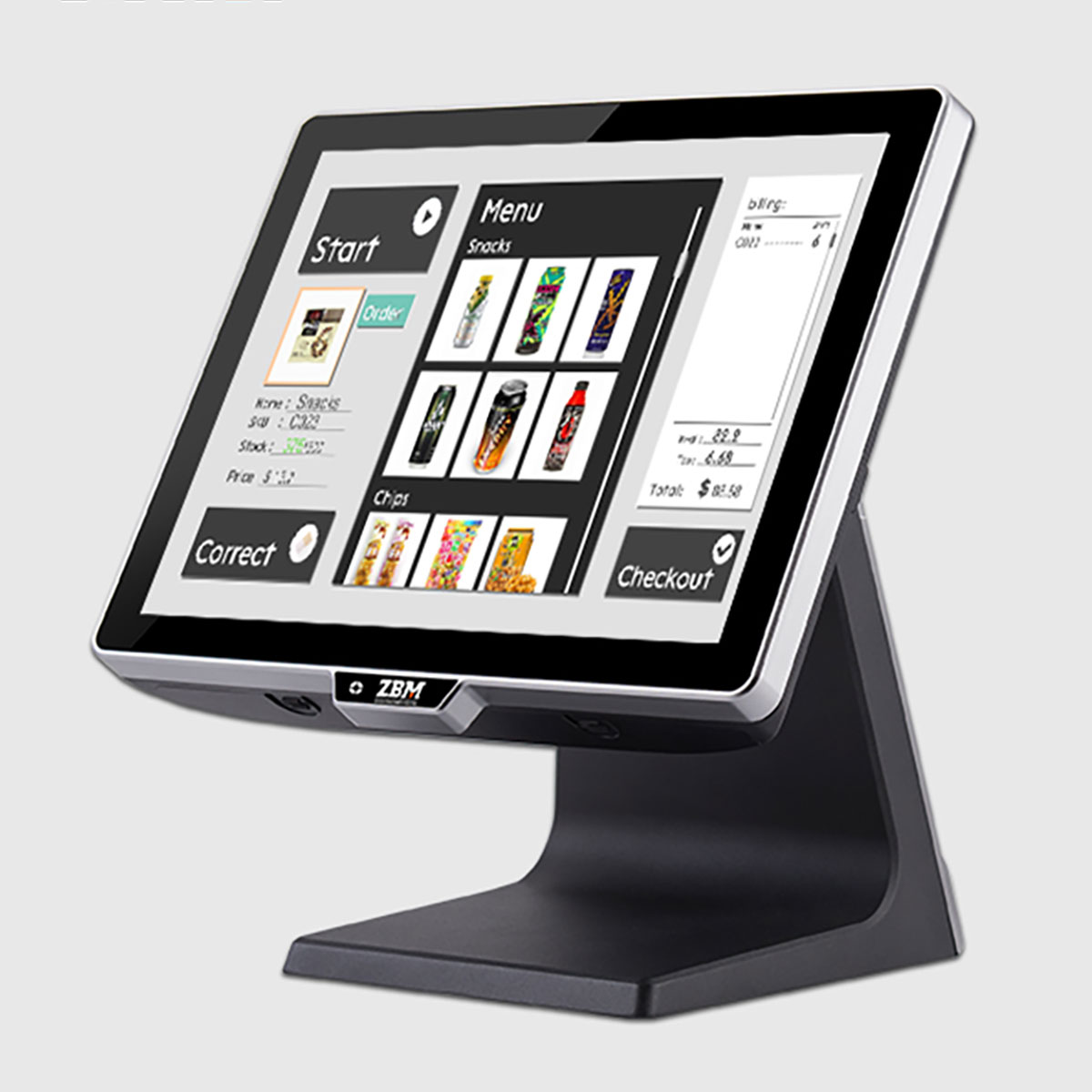

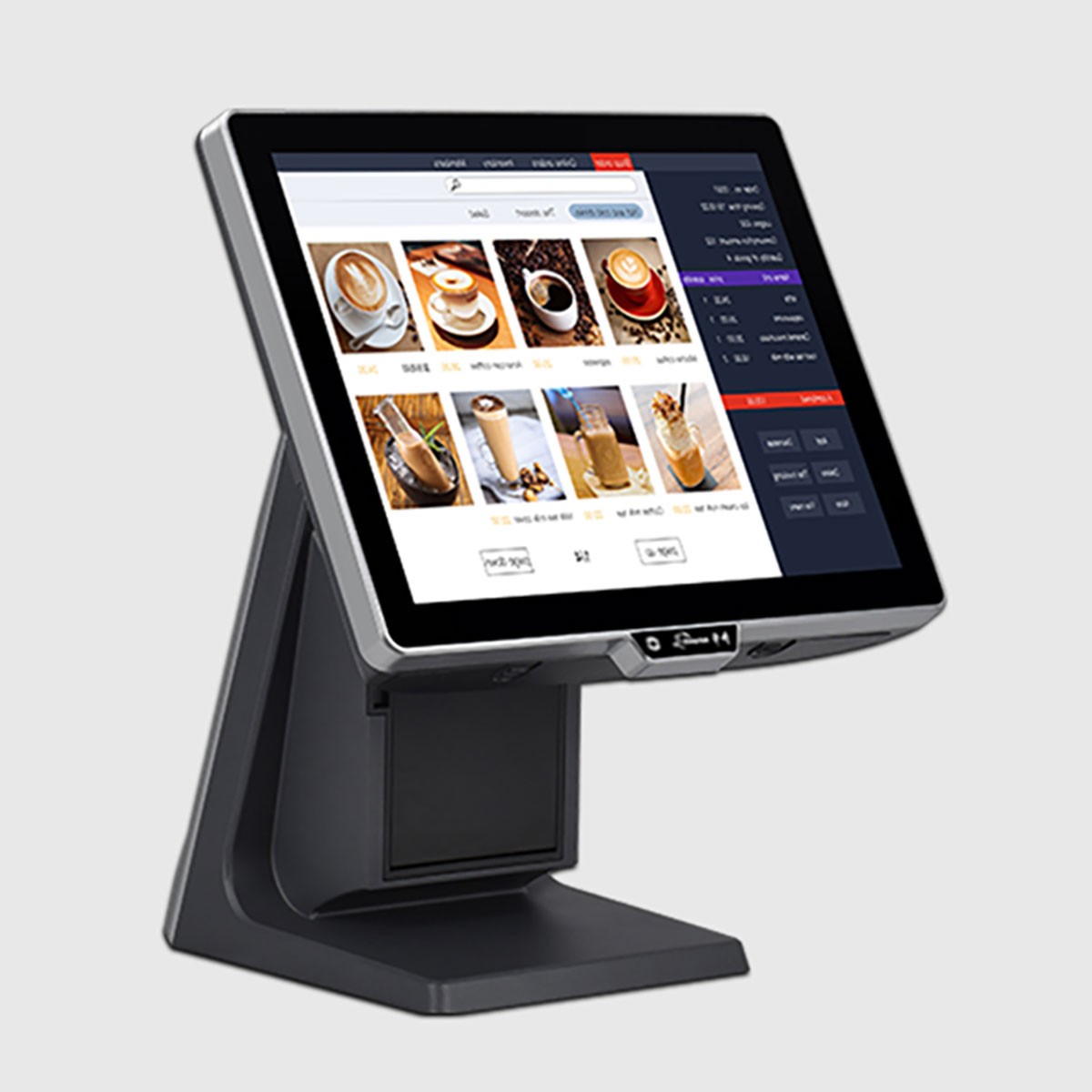

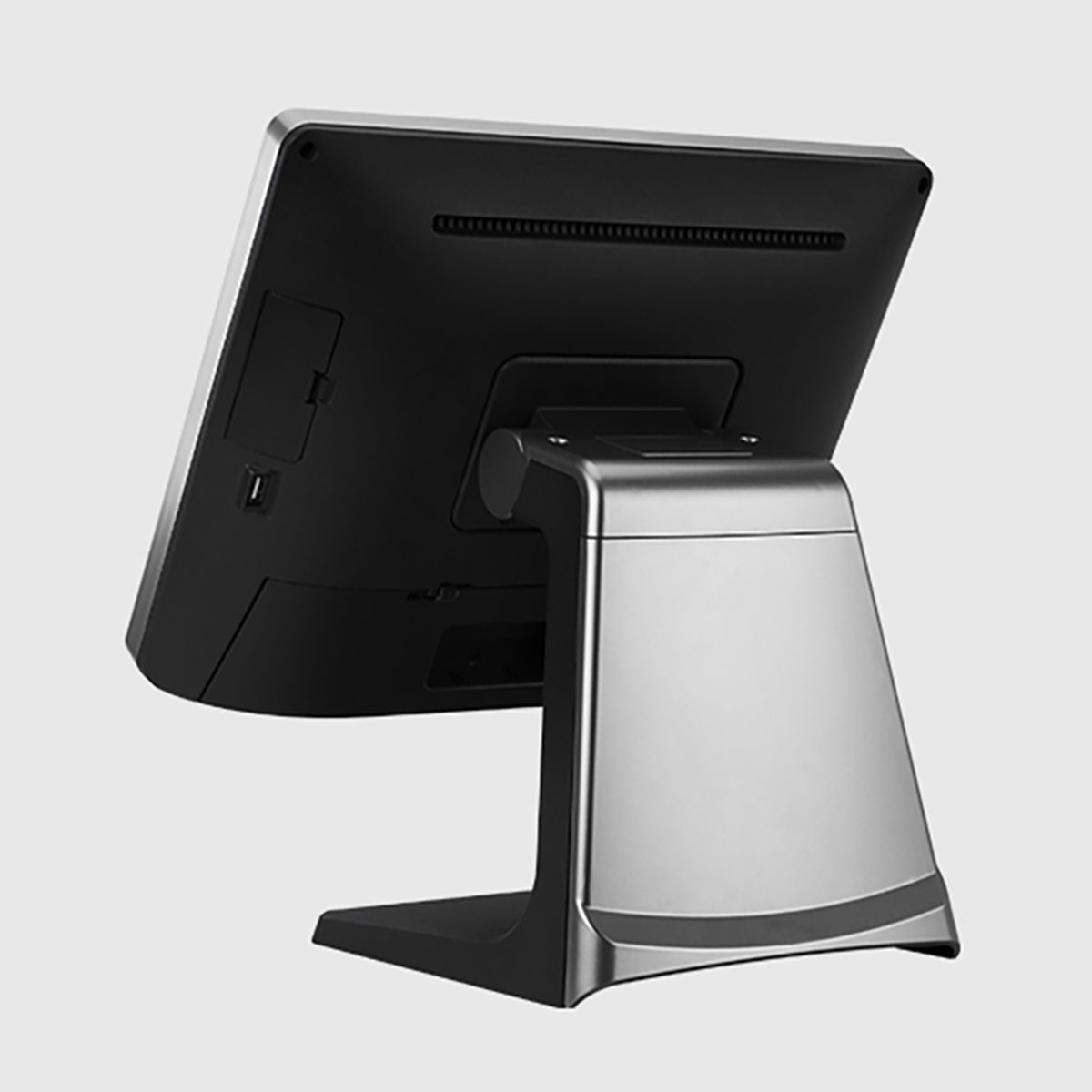

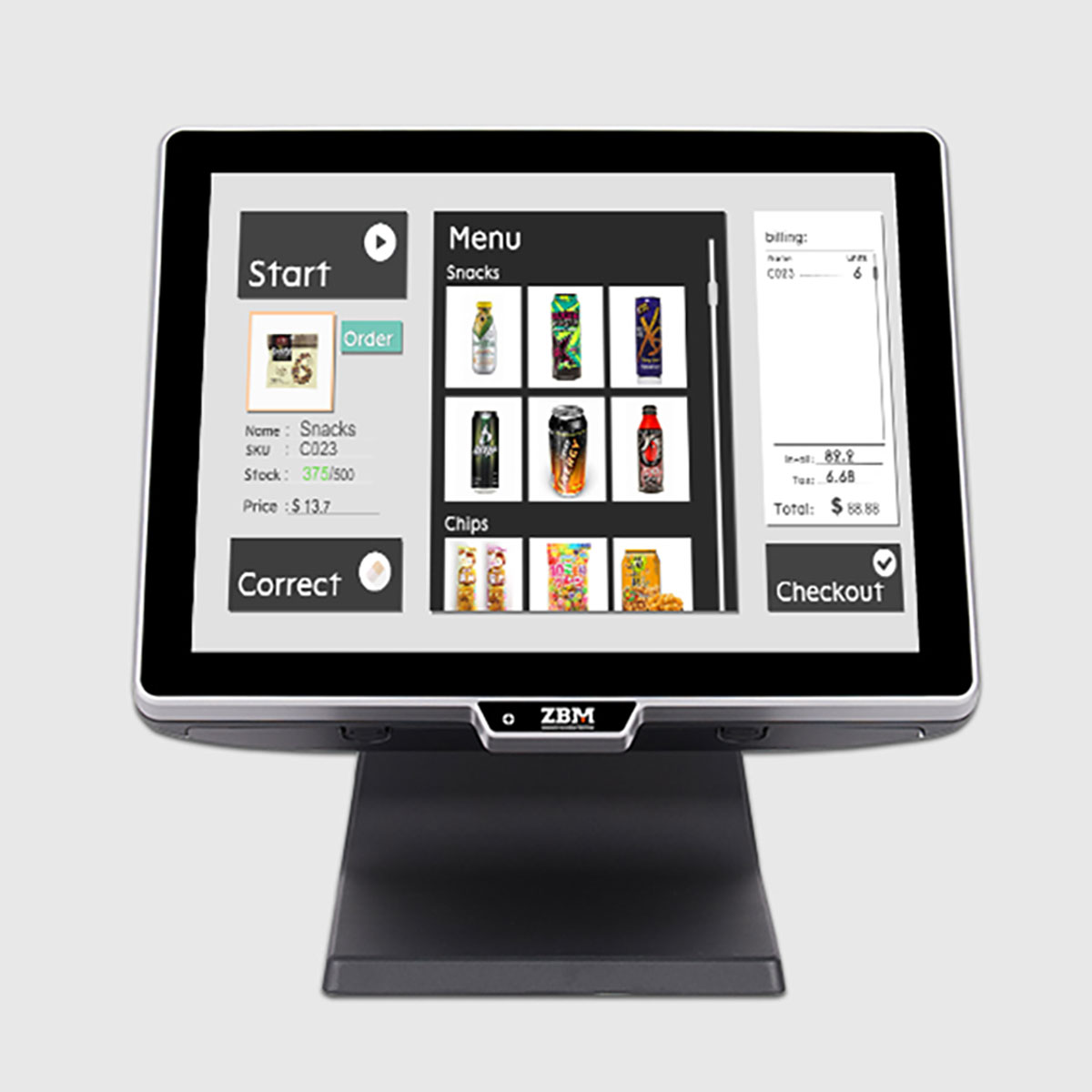

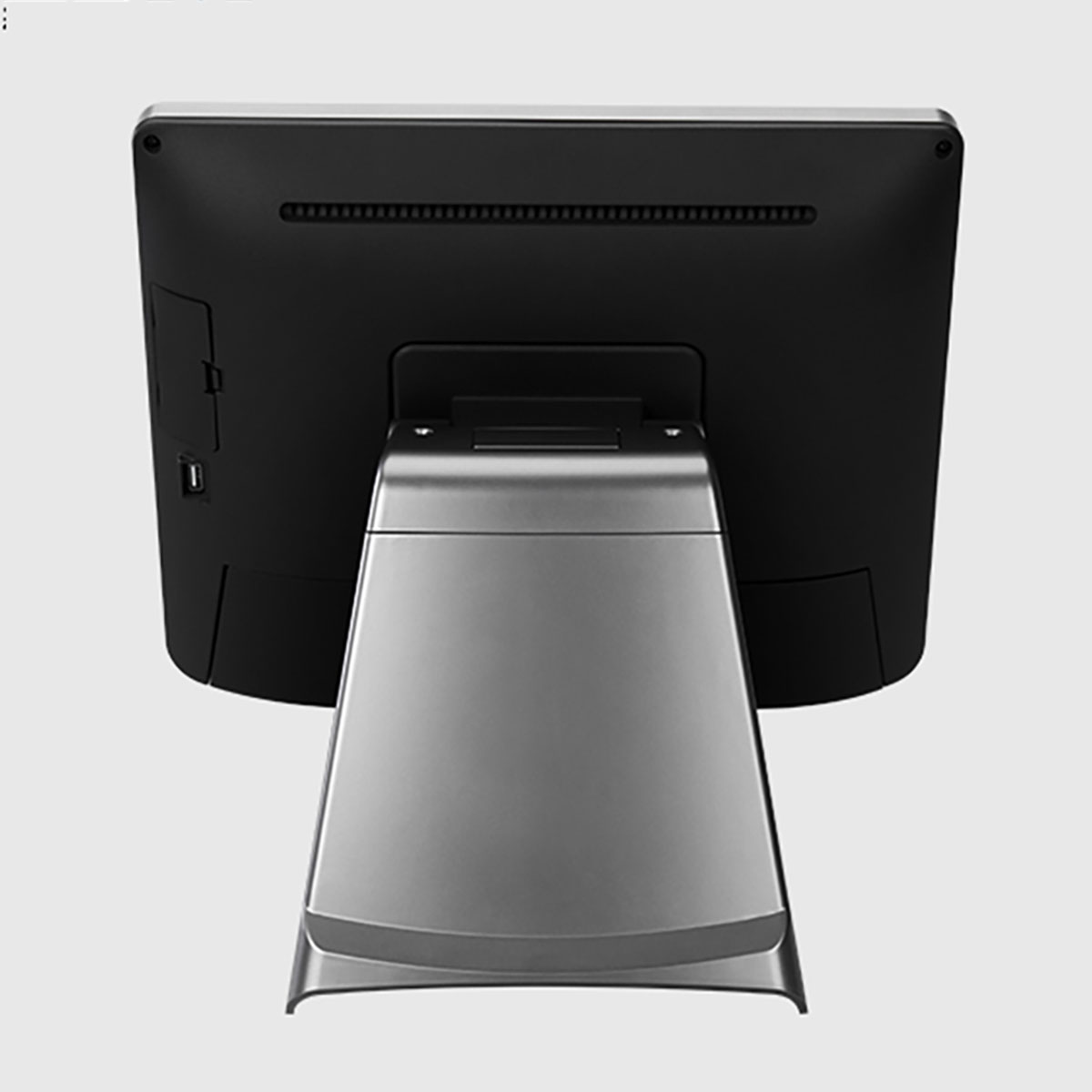

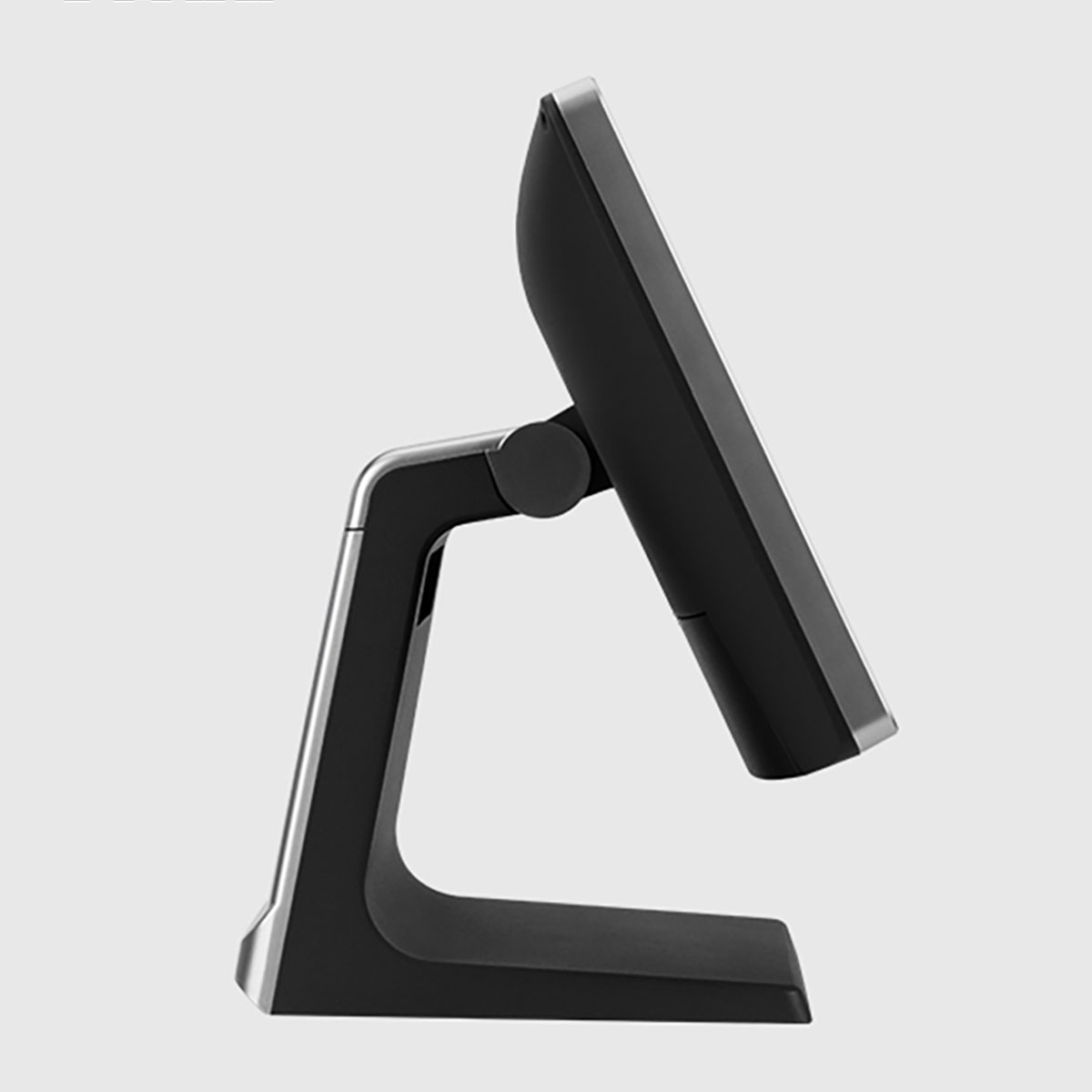

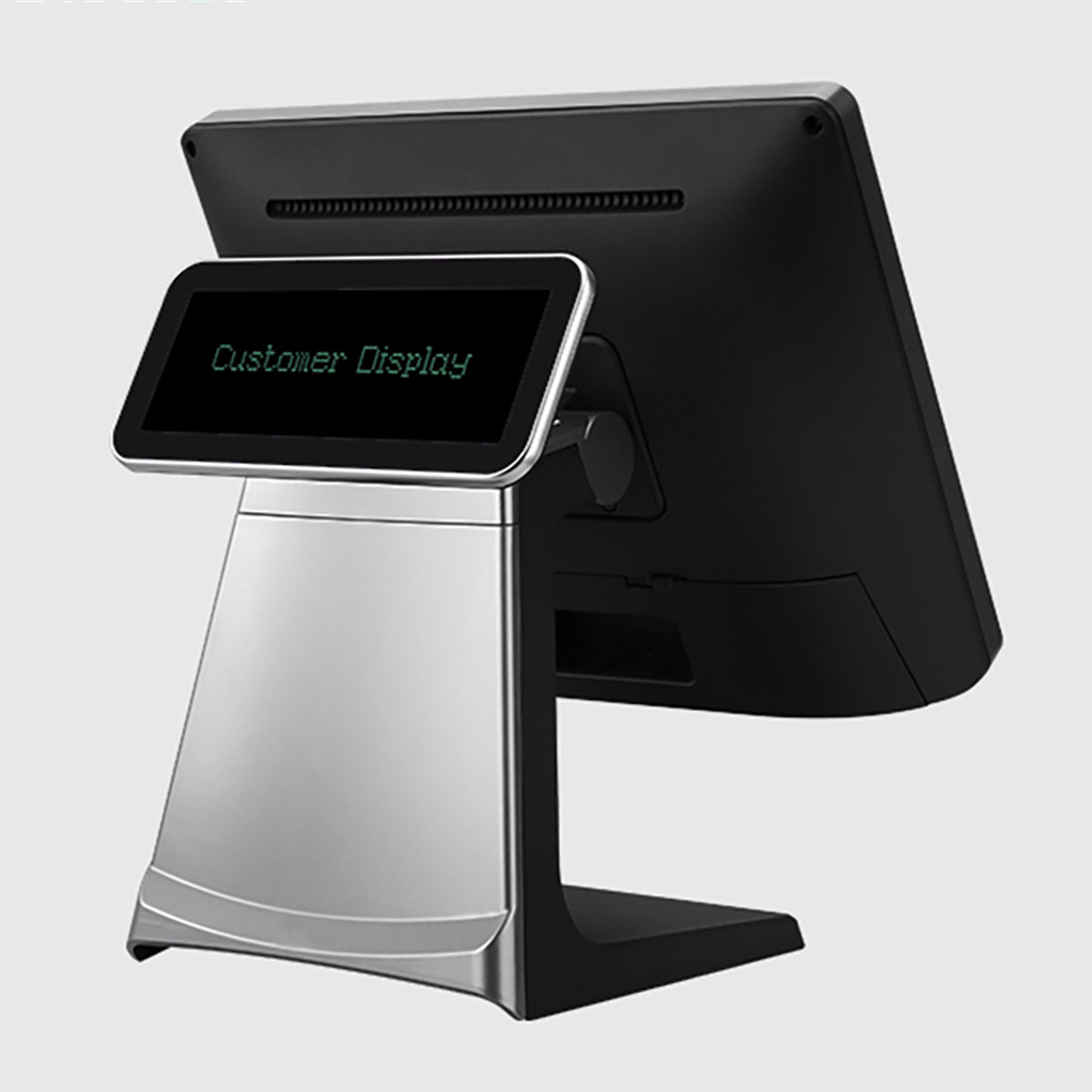

Specification ZQ-T8650 ZQ-T8550 ZQ-T8556
CPU
Intel Core i5 4210U, 1.7GHz up to 2.7GHz
Intel Baytrail-D, Celeron J1900, 2.0GHz up to 2.41GHz, TDP 10W
Graphics
Intel HD Graphics 4400
Intel HD Graphics
Graphic Output
VGA, HDMI, LVDS, EDP
VGA, LVDS, EDP
Display
15" TFT LCD, 1024 x 768 (max.)
15.6" TFT LCD, 1920 x 1080 (max.)
Viewing Angle
45 degree adjustable
Touch Solution
15" Capacitive Touch Panel
15.6" Capacitive Touch Panel
RAM
DDR3L 1333/1600MHz, 4GB as standard, optional up to 8GB
Storage
64GB SSD as standard optional up to 256GB, 1 x SATA, 1 x M-SATA
Audio
Realtek ALC 662HD (on board)
LAN
Realtek RTL8111H, 100m (on board)
Realtek RTL8106E-CG (on board)
Extended Slots
1 x MINI-PCIE (for 4G/WIFI),

1 x SIM (on board)
1 x MINI-PCIE (for 4G/WIFI),

1 x Micro-SIM (on board)
Customer Display
VFD or 9.7" secondary monitor (option)
VFD or 13.3" secondary monitor (option)
I/O Ports
2 x USB 3.0

6 x USB 2.0

1 x LAN

1 x VGA

1x HDMI

1 x MIC-IN, 1x LINE-OUT

1 xDC12V_OUT

2 x RS232
1 x DC24V_IN, 1 x DV12V_OUT

1 x RJ11 for cash box

3 x RJ48 for RS232

4 x USB 2.0 + 1 x USB 2.0

1 x RJ45 for LAN

1 x VGA

1 x LINE-OUT


1 x DC24V_IN, 1 x DV12V_OUT

1 x RJ11 for cash box

3 x RJ48 for RS232

4 x USB 2.0 + 1 x USB 2.0

1 x RJ45 for LAN

1 x VGA

1 x LINE-OUT


O.S. Compliant
Windows 8, Windows 10, Linux (not included)
Input Power
2.5 x DC 1V
DC24V
Power Supply
100 ~ 240V / 47 ~ 63Hz
100 ~ 240V / 47 ~ 63Hz
Work Environment
-10 ~ 60 degrees, 0% ~ 95%
